Minor is very similar to my Micro Kolibri, except it has a smaller (narrower) wing and a balsa conventional tail.
| Plane characteristics | Radio and motor | |||
|---|---|---|---|---|
| Wing span: 53cm (20.8in) | Component | Type | Wt (g) | |
| Wing cord: 11.7cm (4.6in)(root) | Rx | SkyHooks&Rigging 4 ch | 2.7 | |
| Wing loading: 7.4g/sq.dm (2.4oz/sq.ft) | Servos | 2 @ WES LS-24 | 2x2.9 | |
| Fuse length: 39cm (15.5in) | ESC | Pixie-7 | 1.5 | |
| Control: 3 channels (rudder, elevator, throttle) | Battery Pack | 4-cell 120mAh NiMH | 14.8 | |
| Materials: carbon, Reynolds wrap, balsa | Propulsion | KP00 (4.2:1) and free flight prop | 6.8 | |
| Ready to fly weight: 43g (1.5oz) | Total wt | 31.6 | ||

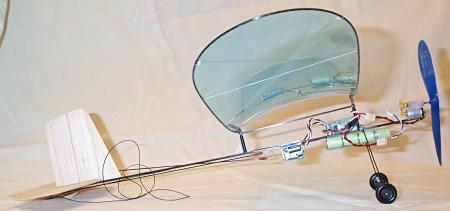

Scratch built Minor.
(There are more images of Minor in the Photo Gallery.)
Construction details:
Construction was very similar to my Kolibri and Micro Kolibri. Minor is
mostly carbon and Reynolds wrap, with a 1/16in sheet balsa tail. The motor
is a KP00 motor regeared to 4.2:1 and spinning a 4.75in free flight prop.
I used the bushings and part of the housing from a Bob Selman Designs
GJS-1A (Kenway KR-1) gear set. Below is close up of the radio gear and
motor.

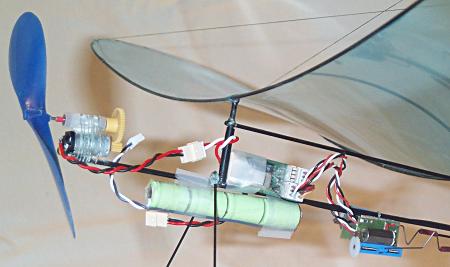

Close up of the radio gear and motor.
